ORTHOPLA

Description

Elasto‑plastic constitutive law for solid elements at constant temperature (non-associated) with linear anisotropic elasticity. Isotropic hardening/softening of friction angle and cohesion is possible.

This law is a combination of ORTHO3D (for the elastic part of the law) and PLA3D (for the plastic behaviour).

This law is only used for mechanical analysis of elasto-plastic anisotropic porous media undergoing large strains.

Files

Prepro: LORTHOPLA.F

Formulation

Yield and flow surfaces

See PLASOL law

Hardening/softening

See PLASOL law (above)

Cohesion anisotropy with major principal stress orientation relative to bedding (IANISO = 0)

The material cohesion depends on the angle $\alpha_{\sigma_1}$ between the major compressive principal stress $\vec{\sigma_1}$ and the normal to the bedding plane $\vec{e_3}$ : \[ \alpha_{\sigma_1} = \arccos\left( \frac{\vec{e_3}\vec{\sigma_{1}}'}{||\vec{e_3}||\ ||\vec{\sigma_1}'||} \right) \]

Fig. 1: Schematic view of the angle between the normal to bedding plane and the direction of major principal stress

Three cohesion values are defined ($c_{0^{\circ}}, c_{min}, c_{90^{\circ}}$), for major principal stress parallel $\alpha_{\sigma_1} = 0^{\circ}$ (perpendicular), perpendicular $\alpha_{\sigma_1} = 90^{\circ}$ (parallel) and with an angle of $\alpha_{\sigma_1, min}$ with respect to the normal to bedding plane (with respect to the bedding plane) (Salehnia, 2015)1). Between those values, cohesion varies linearly with $\alpha_{\sigma_1}$. The mathematical expression of the cohesion is as follows: \[ c = \max \left[\left( \frac{c_{min} - c_{0^{\circ}}}{\alpha_{\sigma_1, min}} \right)\alpha_{\sigma_1} + c_{0^{\circ}} ; \left( \frac{c_{90^{\circ}} - c_{min}}{90^{\circ} - \alpha_{\sigma_1, min}} \right)\left( \alpha_{\sigma_1} - \alpha_{\sigma_1, min} \right)+ c_{0^{\circ}} \right] \]

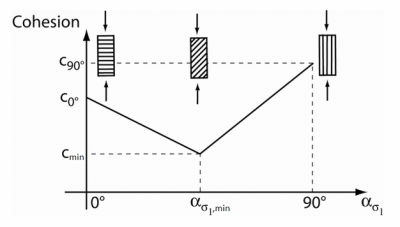

Fig. 2: Schematic view of the cohesion evolution as a function of the angle between the normal to bedding plane and the direction of major principal stress

Cohesion anisotropy by microstructure fabric tensor (IANISO = 1)

The material cohesion anisotropy is defined with a microstructure tensor $a_{ij}$, which is a measure of the material fabric. The eigenvectors of this tensor correspond to the preferred or principal material axes (orthotropic axes) $e_1, e_2, e_3$. The cohesion corresponds to the projection of this tensor on a generalized loading vector l , therefore the cohesion specifies the effect of load orientation relative to the material axes. \[c = a_{ij}l_il_j\] \[l_i = \sqrt{\frac{\sigma_{l1}^2 + \sigma_{l2}^2 +\sigma_{l3}^2}{\sigma_{ij}\sigma_{ij}}}\]

Where $\sigma_{ij}$ expressed in reference to the material axes. The cohesion can be expressed as : \[c = c_0\left( 1 + A_{ij}l_il_j\right)\] \[A_{ij} = \frac{dev(a_{ij})}{c_0} =\frac{a_{ij}}{c_0} - \delta_{ij}\] \[c_0 = \frac{a_{kk}}{3}\]

where $A_{ij}$ is a symmetric traceless operator, $A_{kk}=0$. The above expression can be generalized by considering higher order tensors : \[c= c_0 \left( 1+A_{ij}l_il_j + b_1(A_{ij}l_il_j)^2 + b_2(A_{ij}l_il_j)^3 + … \right)\] where $B_1,b_2,…$ are constants.

Considering cross-anisotropy, i.e. transverse isotropy, and refering the problem to the principal material axes implies $A_{ij} = 0$ for $i \neq j$, $A_{ii} = A_{11}+A_{22}+A_{33} = 0$, $A_{11} = A_{33}$ if the bedding plane is in ($e_1, e_3$) anisotropic plane, $A_{22} = -2A_{11}$, implying : \[A_{ij}l_il_j = A_{l1}(1-3l_2^2)\] where $A_{11}$ is the component of the microstructure operator $A_{ij}$ in the isotropic (bedding) plane. The late expression for cohesion becomes (Pardoen, 2015)2): \[c= c_0 \left( 1+A_{l1}(1-3l_2^2) + b_1A_{l1}^2(1-3l_2^2)^2 + b_2A_{l1}^3(1-3l_2^2)^3 + … \right)\]

The constants $c_0, A_{11}, b_1, b_2, …$ can be obtained from experimental data and laboratory tests. For uniaxial compression : $l_2 = \cos(\alpha)$ , $\alpha$ being the angle between the compression direction and the normal to the bedding plane (figure 1), $\alpha=0^{\circ}$ if the loading is perpendicular to the bedding plane and $\alpha = 90^{\circ}$ if parallel. The cohesion and the uniaxial compressive straight $f_c$ are linked by $f_c = 2c\cos\phi /(1-\sin\phi)$. The constants can be obtained from results coming from tests performed for differents orientation $\alpha$ (figure 3). For axial compression $\sigma_1$ with confinement $p_0$ (triaxial) : $l_2^2 = \frac{p_0^2\sin^2(\alpha)+\sigma_1^2\cos^2(\alpha)}{2p_0^2+\sigma_1^2}$.

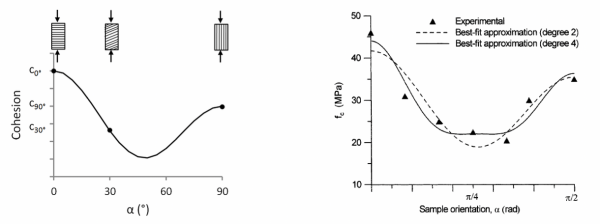

Fig. 3: Schematic view of the cohesion and uniaxial compressive strength evolution as a function of the angle between the normal to bedding plane and the direction of axial loading

Vicoplasticity

See PLASOL
Remark : For anisotropic Biot’s coeffcient, the deviatoric stress is calculated from the effective stresses (more details about this anisotropy are available in the definition of element CSOL2 and ISOL=9 in Appendix 7).

Availability

Plane stress state NO
Plane strain state YES
Axisymmetric state YES
3D state YES
Generalized plane state NO

Input file

Parameters defining the type of constitutive law

Line 1 (2I5, 60A1)
ILLaw number
ITYPE 608
COMMENT Any comment (up to 60 characters) that will be reproduced on the output listing

Integer parameters

Line 1 (14I5)
NINTV = number of sub-steps used to integrate numerically the constitutive equation in a time step.
If NINTV = 0 : number of sub-steps is based on the norm of the deformation increment and on DIV
ISOL = 0 : use of total stresses in the constitutive law
$\neq$ 0 : use of effective stresses in the constitutive law. See Appendix 7
ICBIF = 0 : nothing
1 : Rice bifurcation criterion is computed (only for 2D plane strain analysis)
ILODEF Shape of the yield surface in the deviatoric plane :
= 1 : circle in the deviatoric plane
= 2 : smoothed irregular hexagon in the deviatoric plane
ILODEG Shape of the flow surface in the deviator plane :
= 1 : circle in the deviatoric plane
= 2 : smoothed irregular hexagon in the deviatoric plane
IECPS = 0 : $\psi$ is defined with PSIC and PSIE
= 1 : $\psi$ is defined with PHMPS
KMETH = 2 : actualised VGRAD integration
= 3 : Mean VGRAD integration (Default value)
IREDUC = 0 : nothing
1 : Phi-C reduction method
ICOCA = 0 : nothing
1 : Capillary cohesion formulation ($c = c_0 + AK1.s + AK2.s^2$)
2 : Capillary cohesion formulation ($c = c_0 + AK1.log (s + 0.0001) + AK2$)
3 : Young's modulus is a function of suction
IBEDDING Bedding orientation (normal to the bedding plane)
1 : bedding plane in $e_1e_2$ anisotropic plane (normal $e_3$)
2 : bedding plane in $e_1e_3$ anisotropic plane (normal $e_2$)
3 : bedding plane in $e_2e_3$ anisotropic plane (normal $e_1$)
IANISO = 0 : anisotropy of cohesion with major principal stress orientation relative to bedding
= 1 : anisotropy of cohesion by microstructure fabric tensor
IVISCO = 0 : nothing
1 to 3 : viscoplastic model
IDAM = 0 : nothing
1 : Damage on elastic properties
IHSS = 0 : nothing
1 : Coupling stiffness-deformation

Real parameters

Line 1 (3G10.0)
ALPHAAngle of rotation of the anisotropic axis around Z axis (see figure above)
THETAAngle of rotation of the anisotropic axis around e1 axis (see figure above)

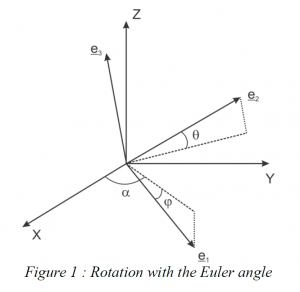

PHIAngle of rotation of the anisotropic axis around e2 axis (see figure above)
Line 2 (9G10.0)
E1Elastic Young modulus E($e_1$)
E2Elastic Young modulus E($e_2$)
E3Elastic Young modulus E($e_3$)
G12Elastic shear modulus G($e_1e_2$)
G13Elastic shear modulus G($e_1e_3$)
G23Elastic shear modulus G($e_1e_3$)
AE1E1 = E1 + AE1 * (-SIG(M)), SIG(M) is confinement pressure
AE2E2 = E2 + AE2 * (-SIG(M))
AE3E3 = E3 + AE3 * (-SIG(M))
Line 3 (5G10.0)
ANU12Poisson ratio NU($e_1e_2$)
ANU13Poisson ratio NU($e_1e_3$)
ANU23Poisson ratio NU($e_2e_3$)
RHOSpecific mass
DIVSize of sub-steps for computation of NINTV (only if NINTV=0; Default value=5.D-3)
Line 4 (7G10.0)
PSICDilatancy angle (in degrees) for compressive paths
PSIEDilatancy angle (in degrees) for extensive paths (ssi ILODEG=2)
PHMPSConstant value for definition of
BIOPTBifurcation computation parameter
AK1Capillary cohesion first parameter
AK2Capillary cohesion second parameter
DECCOHCohesion hardening shifting
Line 5 (7G10.0)
PHICFFinal Coulomb's angle (in degrees) for compressive paths
PHIEFFinal Coulomb’s angle (in degrees) for extensive paths (ssi ILODEF = 2)
RAYPHICRatio between initial and residual friction angle for compressive paths
BPHIOnly if there is hardening/softening
ANVan Eekelen exponent (default value=-0.229)
DECPHICoulomb’s angle hardening shifting
RAYPHIERatio between initial and residual friction angle for extensive paths (ssi ILODEF = 2)
Line 6 (6G10.0)
COHF0Residual value of cohesion for major principal stress 1 perpendicular to the bedding plane (parallel to the normal to the bedding plane) (if IANISO = 0)
COHC0 = c0 (if IANISO = 1), see Cohesion anisotropy by microstructure fabric tensor
COHFMINMinimal residual value of cohesion (if IANISO = 0)
COHAISO = A11 (if IANISO = 1), see Cohesion anisotropy by microstructure fabric tensor
COHF90Residual value of cohesion for major principal stress 1 parallel to the bedding plane (perpendicular to the normal to the bedding plane) (if IANISO = 0)
COHB1 = b1 (if IANISO = 1), see Cohesion anisotropy by microstructure fabric tensor
ANGLEMINAngle between the normal to the bedding plane and the major principal stress 1 for which the cohesion is minimum (if IANISO = 0)
COHB2 = b2 (if IANISO = 1), see Cohesion anisotropy by microstructure fabric tensor
RAYCOHRatio between initial and residual cohesion
BCOHOnly if there is hardening/softening
Line 7 (4G10.0) (Only if IHSS = 1)
E1FFinal elastic Young modulus E($e_{1f}$)
E2FFinal elastic Young modulus E($e_{2f}$)
E3FFinal elastic Young modulus E($e_{3f}$)
Gamma7equivalent strain at which the Young's modulus has reduced to 0.7 times
AaFitting parameter
Line 8 (7G10.0) (Only if IECPS = 2 or 3)
PSICPEAK Peak of dilatancy angle for compressive paths (If IECPS=2 then PSICPEAK is the initial value of dilatancy angle
PSICLIM Limit value of dilatancy angle for compressive paths
RATPSI Ratio between initial and peak of dilatancy angle
BPSI Value of EEQU for which PSIC=0.5 (PSICPEAK - PSICLIM)
PSIEPEAK Peak of dilatancy angle for extensive paths (If IECPS=2 then PSIEPEAK is the initial value of dilatancy angle)
PSIELIM Limit value of dilatancy angle for extensive paths
DECPSI Value of EEQU when the dilatancy angle has been half decreased between its initial and final values
Line 9 (2G10.0) (Only if IDAM = 1)
PParameter controlling the damage evolution rate
YD0Initial threshold

Stresses

Number of stresses

= 4 : for 2D analysis
= 6 : for 3D analysis

Meaning

The stresses are the components of CAUCHY stress tensor in global (X,Y,Z) coordinates.
For 2D analysis :

SIG(1)$\sigma_{xx}$
SIG(2)$\sigma_{yy}$
SIG(3)$\sigma_{xy}$
SIG(4)$\sigma_{zz}$

For the 3-D analysis :

SIG(1)$\sigma_{xx}$
SIG(2)$\sigma_{yy}$
SIG(3)$\sigma_{zz}$
SIG(4)$\sigma_{xy}$
SIG(5)$\sigma_{xz}$
SIG(6)$\sigma_{yz}$

State variables

Number of state variables

= 48 : for 2D plane strain analysis with bifurcation criterion (ICBIF=1)
= 36 : in all the other cases

List of state variables

Q(1) = 1 in plane strain state
= circumferential strain rate ($\dot{\varepsilon_{\theta}}$) in axisymmetrical state
Q(2) = actualised specific mass
Q(3) = Reduced deviatoric stress (varies from 0 to 1)
Q(4) = 0 if the current state is elastic
= 1 if the current state is elasto-plastic
Q(5) = equivalent viscoplastic shear strain, i.e. the generalized plastic distorsion, which increment is $\dot{\gamma_{vp}} = \sqrt{\frac{2}{3}\dot{e}_{ij}^{vp}\dot{e}_{ij}^{vp}}$ (see PLASOL)
Q(6) = equivalent strain $n^o$1 $\varepsilon_{eq1} = \int \Delta \dot{\varepsilon}_{eq}\Delta t$
Q(7) = equivalent strain indicator $n^o 1$ (Villote $n^o 1$) $\alpha_1 = (\Delta\dot{\varepsilon}_{eq}\Delta t ) / \varepsilon_{eq1}$
Q(8) = $\varepsilon_{xx}$
Q(9) = $\varepsilon_{yy}$
Q(10) = $\varepsilon_{zz}$
Q(11) = $\gamma_{xy} = 2.\varepsilon_{xy}$
Q(12) = equivalent strain $n^o 2$ $\varepsilon_{eq2} = \int \Delta \varepsilon_{eq}$
Q(13) = equivalent strain indicator $n^o 2$ (Villote $n^o 2$) $\alpha_2 = \Delta\varepsilon_{eq} / \varepsilon_{eq2}$
Q(14) = actualised value of equivalent plastic strain $\varepsilon_{ep}^{p}$
Q(15) = actualised value of cohesion for bedding perpendicular to 1st principal stress (COHF0, if IANISO = 0) or COHCO ( if IANISO=1)
Q(16) = actualized value of cohesion $c$
Q(17) = actualised value of Coulomb’s friction angle for compr. paths $\phi_C$
Q(18) = actualised value of Coulomb’s friction angle for ext. paths $\phi_E$
Q(19) = 0 : if the stress state is not at the criterion apex
= 1 : if the stress state is at the criterion apex
Q(20) = number of sub-intervals used for the integration
Q(21) = memory of localisation calculated during the re-meshing
Q(22) = ?
Q(23) = ?
Q(24) = ORIENTBED
Q(25) = dilatancy angle in compression
Q(26) = dilatancy angle in extension
Q(27) = damage variable
Q(28) = x plastic deformation
Q(29) = y plastic deformation
Q(30) = z plastic deformation
Q(31) = xy plastic deformation
Q(32) = ?
Q(33) = ?
Q(34)$\rightarrow$ Q(36) = reserved for small strain stiffness (E1, E2, E3)
Q(37)$\rightarrow$ Q(48) = reserved for bifurcation
