LICHT
Flux distributed on a line
Description

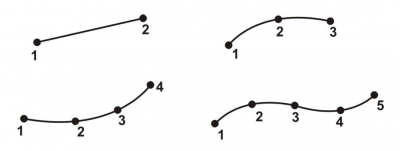

This element imposes a thermal flux along a parabolic border line of an element. This line is defined by a variable number of nodes (2, 3, 4 or 5).
The flux is defined by the fictive law LICHT. This flux is multiplicated either by multiplicator FMULT or by DMULT.
Type: 115
Implemented by: R. Charlier, 1985
Files
Prepro: LICHTA.F
Lagamine: LICHTB.F
Input file
| Line 1 (A5) | |
|---|---|
| TITLE | “LICHT” in the first five columns |
| Line 2 (I5) | |
| NELEM | Number of elements |
| Definition of the elements (2I5/5I5) repeated NELEM times | |
| NINTE | Number of integration points (2 or 3) |
| LMATE | Material law |
| NODES(5) | List of nodes defining the element |
Results
Sigma: Imposed flux
