PLXNT
Description
Plane or axisymmetric state.
For the axisymmetric state, the axis of symmetry is necessarily the Y axis.

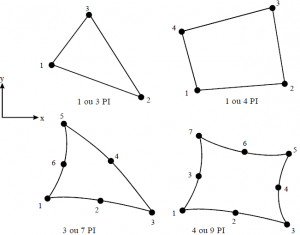

The element is defined by 3, 4, 6, or 8 nodes.
Type: 107
Implemented by: J.P. Radu, 1996 - from developments of R. Charlier, 1982
Files
Prepro: PLXNTA.F
Lagamine: PLXNTB.F
Input file
| Title (A5) | |
|---|---|
| TITLE | “PLXNT” in the first 5 columns |
| Control data (I5) | |
| NELEM | Number of elements |
| Definition of elements (3I5/8I5) | |
| NNODE | Number of nodes (3, 4, 6, or 8) |
| NINTE | Number of integration points (1, 3, 4, 7, or 9) |
| LMATE | Material |
| NODES(8) | List of nodes |
Results
Sigma(1): Flow along X direction $f_X$
Sigma(2): Flow along Y direction $f_Y$
Sigma(3): Capacitive flow or accumulation flow $f_c$
