PLATH
Description
Plane state.

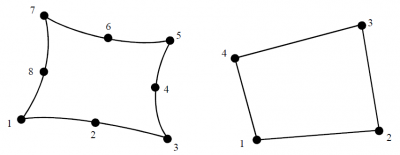

The element is defined by 4 or 8 nodes.
Type: 105
Files
Prepro: PLATHA.F
Lagamine: PLATHB.F
Input file
| Title (A5) | |
|---|---|
| TITLE | “PLATH” in the first 5 columns |
| Control data (I5) | |
| NELEM | Number of elements |
| Definition of elements (2I5/8I5) | |
| NINTE | Number of integration points (4 or 9) |
| LMATE | Material |
| NODES(8) | List of nodes |
Results
Sigma(1): Flow along X direction $f_X$
Sigma(2): Flow along Y direction $f_Y$
Sigma(3): Capacitive flow or accumulation flow $f_c$
