JET3T
Description
Volumic element for non-linear thermal conduction, with control of hourglass modes and 1 integration point.
Type: 125
Implemented by: M. Dyduch, 1991
Files
Prepro: JET3TA.F
Lagamine: JET3TB.F
Input file
| Title (A5) | |
|---|---|
| TITLE | “JET3T” in the first 5 columns |
| Control data (I5) | |
| NELEM | Number of elements |
| Definition of elements (I5/8I5) | |
| LMATE | Material law |

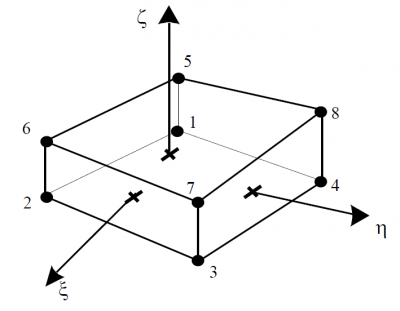

| NODES(8) | List of nodes defining the element |
Results
Sigma(1): Flow along X direction $f_X$
Sigma(2): Flow along Y direction $f_Y$
Sigma(3): Flow along Z direction $f_Z$
Sigma(4): Capacitive flow $f_c$
Sigma(5)-Sigma(8): Hourglass flow
