Lagamine

CHAB1_IDAM_23_TMF

CHAB1_IDAM_23_TMF
Created by	Morch Hélène
Reference solution date	28-09-2022
Lagamine version of reference	4c11d9f4 (29/09/22)
Description
Simulation	Single-element thermo-mechanical fatigue test using mechanical law CHAB with semi-coupled damage, thermal law THNL-S, and BWD3T elements
Type (Mini or Big)	Mini
Law/Element to be checked	CHAB law with semi-coupled parabolic corrosion damage and mechanical damage
Type of result (local): stress, state variable,..	Stresses : - $\sigma_{xx}$
	Strains : - Cumulated equivalent plastic strain $p$ - Thermal strain $\varepsilon_{th}$ - Total strain along loading direction $\varepsilon_{xx}$

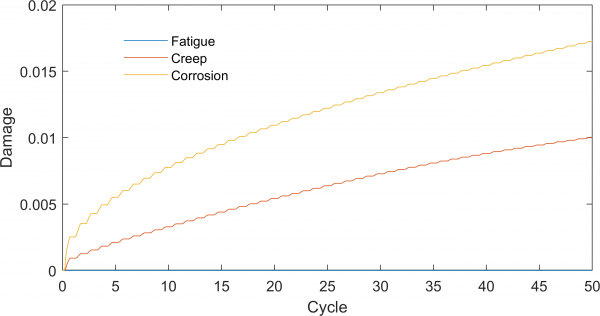

	Damage : - Fatigue damage $D_f$ - Creep damage $D_c$ - Corrosion damage $D_u$
Type of result (global): temperature, force,…	N.A.
Result file	IPE file
Strategy options
PRECF	1.0e-4
PRECU	1.0e-4
Time (1 CPU)	15.5 s
Time (more than 1 CPU)	N.A.
Total number of steps	445
Total number of iterations	879
Used solver (4 or 8)	4
